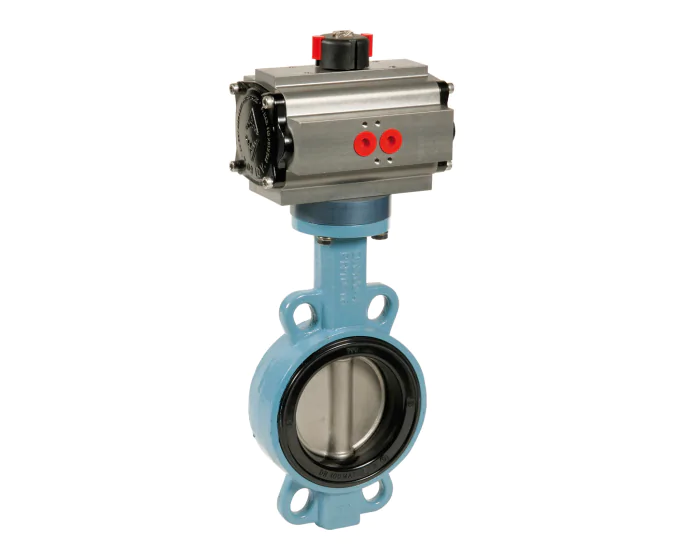

The 1152 series ductile iron butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, features a CF8M disc, up to DN250. It is a wafer type, PN10/16 and ANSI 150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel AISI 420 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | 32 - 40 |
| Face to Face (mm) | 33.0 |
| Seat | NBR |
| Body material | Ductile iron |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Warranty period | 2 years |
| CE | Risk category I |
| Range | TTV |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Ductile iron Concentric Double acting 32 - 40 | 260333015100 | S1003146 |
€254.59
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric Spring return 32 - 40 | 260333016101 | S1003147 |
€297.01
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN50 - 2'' Double acting | 260334015100 | S1003148 |
€254.59
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN50 - 2'' Spring return | 260334016101 | S1003149 |
€297.01
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 Double acting | 260335015101 | S1003150 |
€254.59
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 Spring return | 260335016102 | S1003151 |
€297.01
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN80 - 3'' Double acting | 260336015101 | S1003152 |
€260.96
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN80 - 3'' Spring return | 260336016102 | S1003153 |
€297.01
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN100 - 4'' Double acting | 260337015102 | S1003154 |
€286.41
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN100 - 4'' Spring return | 260337016103 | S1003155 |
€339.46
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN125 - 5'' Double acting | 260338015102 | S1003156 |
€319.30
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN125 - 5'' Spring return | 260338016104 | S1003157 |
€419.01
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN150 - 6'' Double acting | 260339015103 | S1003158 |
€376.59
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN200 - 8'' Double acting | 260340015104 | S1003159 |
€494.33
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric Double acting DN250 - 10'' | 260341015105 | S1003160 |
€798.79
(excl. btw)
|
add to cart |
